Yamaha UD-WL01 USB Wireless Lan Adapter for Piano: Explained
Disclosure: Some of the links in this article may be affiliate links, which can provide compensation to me at no cost to you if you decide to purchase.

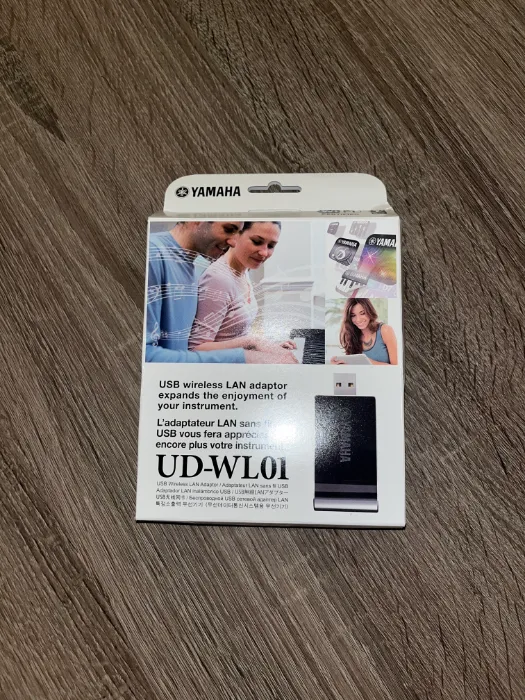

Yamaha UD-WL 01
This accessory is attached to all new Disklavier player pianos. As for other electric pianos and compatible products like digital musical instruments, it can be purchased separately, but will work just as seamlessly.
It's expected that this device is included with each piano to provide greater flexibility when it comes to internet connection in a clients' home.
The ability of this device to connect to the home wifi router depends mostly on the pre-existing hardware in the home and little to do with Yamaha's hardware. Having said that, it does not provide the strongest internet connection because wired ethernet and 3rd party routers offer a stronger and more stable connection.
Scroll down to learn how easily this device can be connected to the internet.
What is Yamaha's UD-WL01?
The UD-WL01 is a USB Flash Drive that acts as a Wireless Lan Adapter, which allows access to the Enspire App (for player pianos) when there is NO internet connection; it also allows for WPS (Wi-Fi protected setup) connection (so the piano can be linked to the internet).
It's sorta like a wireless Wi-Fi router just for your piano. All it takes is clicking the "pair" button a few times and then pressing the WPS "pair" button on your home router and it's connected!
The UD-WL01 is a necessary component when configuring a static IP, for more sophisticated home networks. Although, most home networks are not that sophisticated.
Does the UD-WL01 have a Warranty?
The following limited warranty is valid so long as the product was well taken care of...
The term of this warranty from Yamaha Corporation of America lasts 1 year, so long as it was a defective product and NOT due to neglectful damage.
As long as it's in tact and not damaged, then it's eligible for replacement. Bear in mind that I've never had a problem with this device.
Why does the UD-WL01 have such an odd name?
"UD-WL01" is simply the model name for this wireless adapter. (Like Civic is to Honda, for a Honda Civic)
The name "UD-WL01" might seem odd at first, but it's crafted with care to fit into Yamaha's broader product naming strategy.
(A view of the owner's manual or connection manual)
What is the UD-WL01 needed for?
If the piano is NOT connected to the internet, then it is necessary to insert the UD-WL01 into the rear of the switchbox in order for a mobile device to have a connection to the Yamaha Controller App called "Enspire".
It enables wireless connection to the internet via WPS (WiFi Protected Setup). The easy setup only requires you to press the WPS button on your home wifi router and then press the WPS button on the side of the UD-WL01 for them to pair properly.
Can the UD-WL01 be setup with other Yamaha products?
The Yamaha UD-WL01 wireless lan adapter can work with many Yamaha keyboards and digital pianos which connects to the USB device jack of your instrument. As a piano technician, the use of Yamaha wireless lan adapters comes naturally in regards to the ecosystem of Yamaha products.
Why is the Yamaha UD-WL01 not working?
It's likely that the electrical equipment of the UD-WL01 is working perfectly fine.
The problem usually lies with the home Wi-Fi router. The 2 problems that I typically see as a piano technician who frequently works on this issue...
The home Wi-Fi router is out of range (Over 25-50ft away)
The home Wi-Fi router does not support WPS connection
I'll admit that the technology capability of wireless lan adapters is not very strong, which is why I recommend looking into other options when trying to connect your piano to internet (so long as it has an ethernet port). 3 Best Ways to Connect a Yamaha Disklavier Piano to the Internet (View options 1 and 3 for stronger connection and a 'hybrid' wireless router).
Usage of the wireless lan adapter made by Yamaha can be quite convenient if the hardware is already provided with the piano and the home environment is properly suited for it with a home Wi-Fi router that supports WPS connection.
FAQ
What is a Wireless LAN Adapter?
A Wireless LAN Adapter is a computer accessory that can be plugged into a device to establish internet connection. It may enhance the wireless capabilities of devices with substandard built-in Wi-Fi.
The UD-WL01 is specifically designed for ease of use. Installation involves inserting the USB adapter into a USB port on your device; supporting plug and play functionality.
Plug in the UD-WL01 Yamaha USB Wireless Lan Adapter to establish internet connection through any USB port. It essentially acts as an antenna picking up wireless signals from nearby networks.
The adapter allows your device to both send and receive signals over the internet without being tethered by physical cables.
