Are you looking to connect a Yamaha Disklavier Piano to a Sonos system without the help of a piano technician?

Unfortunately, additional components are required for the piano to connect to the home audio system.

A "Sonos Port" is the necessary item to connect a Yamaha Disklavier Piano to a Sonos Audio System.

*Please note that if you have an Enspire Classic, the piano sound will be the music from the real acoustic piano, not digitally reproduced through the Sonos/speakers. This is because these models do not have a silent bar. Background music will be the only audio playing through the speakers.

How to Connect Disklavier to Sonos?

Connect from the CC Unit of the Disklavier (located under the soundboard).

Disklavier CC Unit

(Use the OMNI out, instead of the OMNI in shown in the photo)

RCA cables should be connected from the OMNI out RCA jacks going to the  Sonos Port.

Piano's OMNI out ==> RCA Cables ==> Sonos Port OMNI in

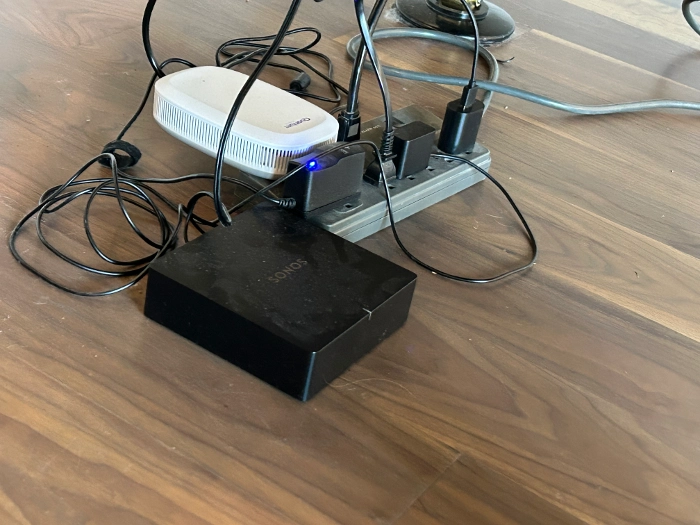

Sonos Port

Sonos App Settings

Sonos App

In the Sonos App, select the Sonos port to broadcast the audio to the living room.

Select the input sensitivity control and set it around mid-range. Keep the volume fairly low and see how things sound.

Disklavier Enspire App Settings

Enspire Controller App

(Make sure the piano isn't in standby mode)

Select the Piano digital volume control and adjust it to 25% and see how things sound.

If you need the Sonos volume louder as background music, select 50% or greater on the piano output, first.

Sound Balance Settings

*With multiple volume level controls in this system, finding the sweet spot can take a few tweaks. Greater precision comes with time.

Sound degradation can occur if the output volume from the piano is too low and the input volume on the Sonos too high.

"Is the Disklavier compatible with the other Sound Systems?"

Yes! As long as the home audio system has some sort of analog/aux input, then connection to your home audio system is possible.

Questions?: Contact Kevin
