Esinkin Bluetooth BT Adapter Setup Manual
Disclosure: Some of the links in this article may be affiliate links, which can provide compensation to me at no cost to you if you decide to purchase.

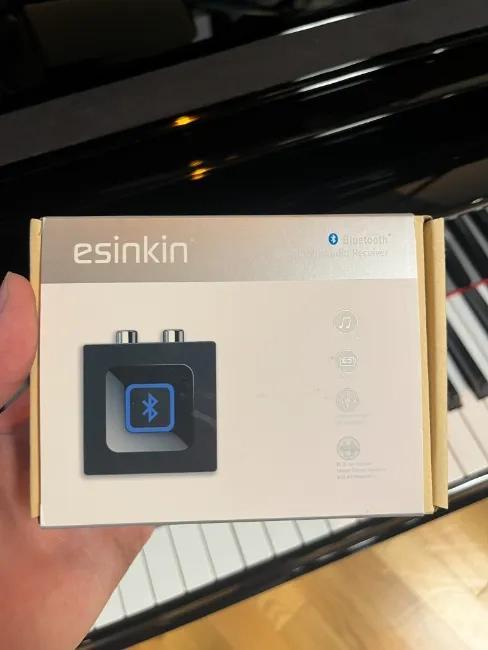

Esinkin Bluetooth hardware Installation
The purpose of the bluetooth adapter depends on which player piano system it's installed on and also depends on its application with respect to how it should function.
In most instances, it's so the sound and piano signal can be relayed back into the speakers and player piano.
The signal is "paired" from your iPhone/iPad device to the player piano.
The analog audio signal is received by the bluetooth adapter and fed to the piano.
Logitech also sells a similar bluetooth adapter that looks and functions identically.
Esinkin Bluetooth Adapter hardware and software setup
Plug in the Bluetooth Adapter to an outlet.
Plug in the auxiliary cables from the Bluetooth Adapter to the input auxiliary jack somewhere on the piano.
“Pair” the Bluetooth Adapter by pressing the big pairing button 3 times; Select and connect to the “Esinkin BT Adapter” within the bluetooth settings of your mobile device (iPhone, iPad, Android).
Be sure that the audio output of whichever mobile app you're using goes through the “Esinkin BT Adapter.”
Esinkin BT Adapter Connection example
The end-to-end RCA cables are plugged into the Bluetooth adapter as well as into the omni in auxiliary jacks which are located underneath the soundboard of the piano.
How to pair the Logitech / Eskinkin bt Adapter?
Press down 3 times on the big "pairing" button on the face of the bluetooth adapter so that it can begin to pair.
If the RCA cables are plugged into the correct location, you should be able to hear 2 tones as the bluetooth adapter is powering on.
When paired properly, you will have full audio connectivity through the piano speakers along with the player pianos' playback functionality.
*Find the Logitech / Eskinkin bt adapter under the names of the bluetooth devices to pair to your piano.
Where do I plugin the bluetooth adapter to my Piano?
The Esinkin bluetooth adapter is plugged into a power source near/underneath the piano. This power strip was installed by me to increase the available power sources on the underside of the piano.
I prefer to have a power cord going to the underside of the piano so that all the cables are condensed and neat.
The final result is that there appears to be only 1 cable coming down from the underside of the piano.
